Metso C150 Jaw Crusher Pitman: Cast Steel Assembly Spares

Metso C150 Jaw Crusher Pitman: Heavy-Duty Cast Steel Assembly

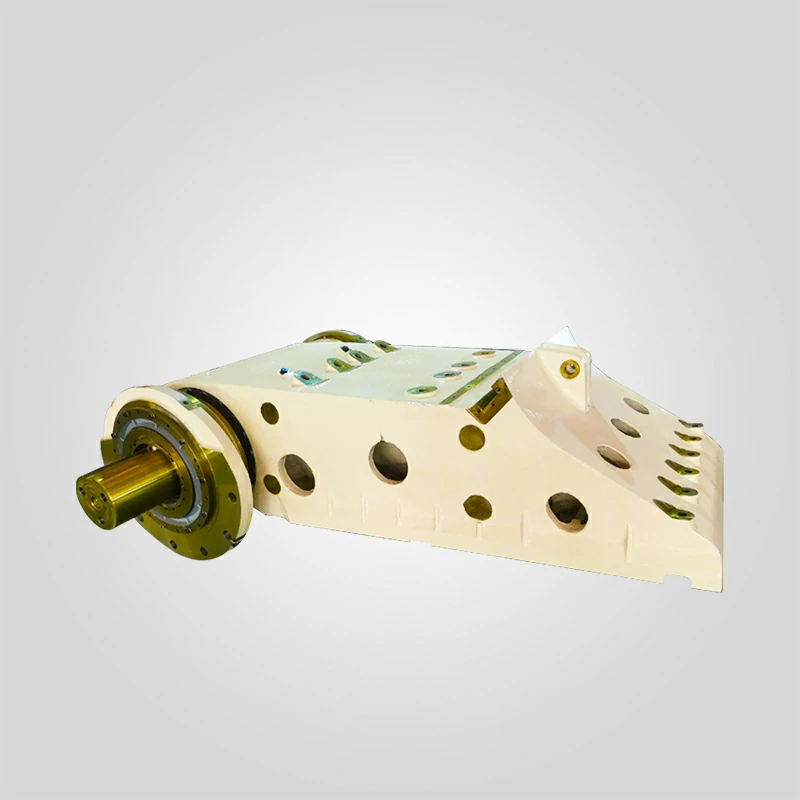

The Jaw Crusher Pitman for the Metso Nordberg C150 is the kinetic heart of primary crushing operations. Weighing over 6,000 kg, this massive moving component translates the eccentric shaft’s rotation into the 500+ tonnes of compressive force required to fracture granite and iron ore. Unlike sacrificial wear parts, our Pitman is a structural asset engineered for infinite fatigue life using premium high-strength cast steel.

We supply complete Pitman assemblies that are fully machined, stress-relieved, and NDT-certified. As specialized crusher part suppliers, we guarantee dimensional interchangeability with OEM part numbers, ensuring a drop-in replacement that restores your crusher’s factory geometry.

Technical Specifications

Our manufacturing adheres to rigorous ASTM and ISO standards for large-scale steel castings. The specifications below apply to our Metso C150 compatible units.

Engineering Excellence: Why Cast Steel?

It is critical to clarify a common market misconception: A Pitman should never be made of Manganese Steel. Manganese steel is ductile and deforms under load. For the C150 Pitman, we strictly utilize Low-Alloy Cast Steel (GS-20Mn5). This material provides the high yield strength necessary to maintain the precise interference fit of the bearings and the toggle seat geometry, preventing catastrophic structural failure under load.

• Stress-Relieved Casting: Every Pitman undergoes a 24-hour thermal cycle to relieve residual casting stresses. This prevents the “spring-back” effect during machining and ensures the bearing bores remain perfectly round during operation.
• CNC Machining: We utilize 4-axis CNC boring mills to machine the eccentric bearing housings and toggle seat in a single setup. This guarantees parallelism within 0.05mm, which is vital for bearing longevity.

Preventative Maintenance: The 20,000-Hour Check

For a C150 Pitman, fatigue is the enemy. We recommend a “Health Check” every 20,000 operational hours:

Critical Stress Zones: Use Dye Penetrant or MPI to inspect the radius fillets near the toggle seat and the upper lifting lugs. These are the highest stress concentration points. Early detection of micro-cracks here can save the entire crusher from self-destruction.

Bearing Housing Ovality: Measure the bearing bores during bearing changes. If the bore is out of round by more than 0.08mm, the housing must be line-bored or thermally sprayed to restore tolerance. Installing new bearings into an oval housing leads to rapid failure.

Global Supply Chain & Part Integration

We streamline your maintenance shutdowns by supplying not just the Pitman, but the entire assembly kit. This includes the eccentric shaft, bearings, and labyrinth seals. We also stock compatible wear components like standard Jaw Plates and Cone Crusher Liner sets for your secondary crushers, positioning us as your single-source partner for crusher spares.

Our logistics team manages the heavy-lift transport required for these 6-tonne components, offering DDP (Delivered Duty Paid) shipping to major mining hubs globally within 45 days.

Expert Engineer’s Note: Installation Protocol

Safety & Precision: Installing a C150 Pitman is a heavy-lift operation requiring strict safety protocols. When installing the large spherical roller bearings, induction heating is mandatory. Ensure the Pitman is perfectly vertical when lowering it onto the toggle plate; misalignment can chip the hardened toggle seat insert instantly. Always verify the toggle plate angle after installation to ensure optimal crushing geometry.
