Krupp KB 63×75 Gyratory Crusher Concaves | OEM Wear Parts

Krupp KB 63″ x 75″ Gyratory Crusher Concaves – High-Performance Wear Parts

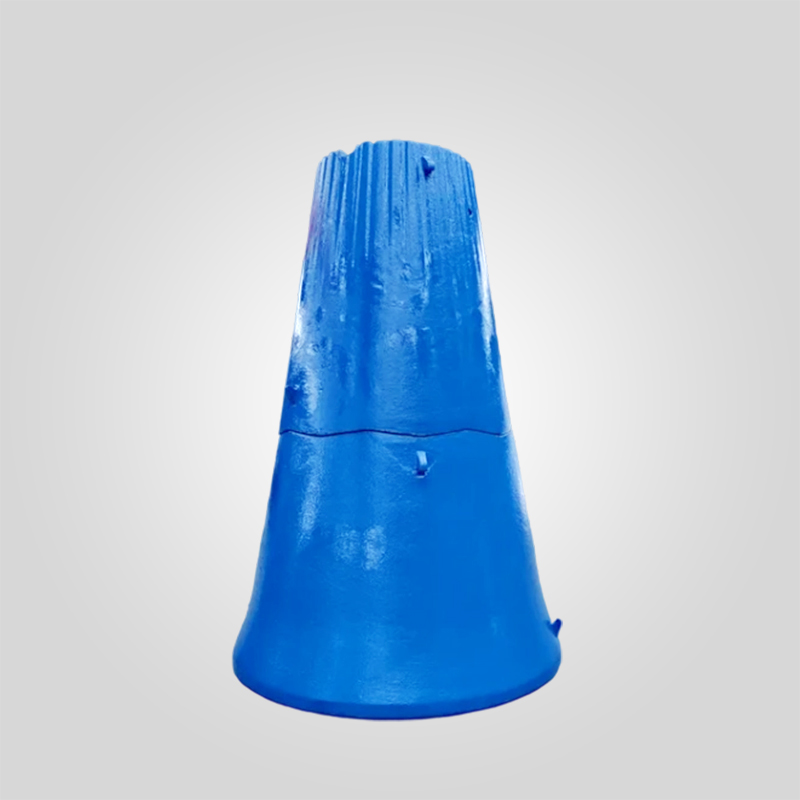

The Concave segments, technically known as the upper liners, are the stationary wear components essential for the operation of the Krupp KB 63″ x 75″ Gyratory Crusher. These parts form the outer wall of the crushing chamber. When paired with the moving mantle, they facilitate the efficient reduction of run-of-mine (ROM) feed materials. Engineered to meet strict OEM specifications, our crusher spares offer superior dimensional accuracy and metallurgical integrity.

Our aftermarket solutions focus on extending service life and reducing change-out intervals, serving as a reliable alternative to OEM components for heavy-duty mining operations processing granite, basalt, and iron ore.

Core Advantages & Engineering Highlights

To ensure maximum uptime and crushing efficiency, our concave segments are manufactured using advanced foundry technologies. Unlike standard commercial castings, we utilize a Vacuum Molding (V-Process) or Lost Foam casting method to ensure tight tolerances and zero internal porosity.

• Metallurgical Superiority: Manufactured in accordance with ASTM A128 standards. We utilize ultra-pure manganese steel (Mn18Cr2 or Mn22Cr2) refined through Argon Oxygen Decarburization (AOD) to minimize inclusions.
• Precise Fitment: CNC precision machining of the mating surfaces ensures 100% contact with the top shell, preventing liner movement and shell wash during operation.
• Structural Integrity: Each segment features scientifically designed integral ribs and reinforced backing. This design withstands the extreme compressive forces of gyratory crushing, preventing cracking under shock loads.

Technical Specifications

The following table details the material science and physical properties of our premium wear parts. These specifications are validated to meet or exceed the operational demands of the Krupp KB 63″ x 75″.

Performance Comparison & Efficiency

Optimizing the crushing chamber profile is critical for maintaining throughput. Our improved alloy formulations and profile designs deliver measurable operational gains compared to standard generic manganese liners.

• Wear Life Extension: The addition of Chromium (Cr) and Molybdenum (Mo) in our specific alloy recipes results in a 15-20% increase in wear life compared to standard Mn13 steel.
• Hardening Rate: Our Mn18Cr2 matrix is designed to work-harden rapidly upon impact, creating a wear-resistant surface layer while retaining a ductile core to prevent catastrophic failure.
• Cost Efficiency: By aligning the wear rates of the upper and lower tiers, we reduce the frequency of maintenance shutdowns, lowering the total cost per ton of crushed material.

Maintenance Diagnosis: When to Replace Concaves

Proactive maintenance of Gyratory Crusher Parts is vital for asset protection. Operators should monitor the following indicators to determine replacement timing:

• Wear Profile Measurement: Replace segments when the liner thickness is reduced to approximately 20-25mm at the thinnest point, or when the wear profile compromises the nip angle, reducing intake capacity.
• Cupping or Grooving: Excessive vertical grooving indicates improper feed distribution. While minor grooving is acceptable, deep channels can lead to localized stress concentrations and cracking.
• Visual Inspection: Check for signs of plastic deformation or “mushrooming” at the segment gaps. This can cause segments to heave and damage the top shell.

For procurement of these critical Gyratory Crusher Parts, please reference the original Krupp part numbers found in your machine’s assembly drawings. Providing the serial number ensures we supply the exact revision required for your specific installation.

Ready to optimize your primary crushing circuit? Contact our engineering team today to verify stock availability and request a technical quote.
