HP Series Bowl Assembly | Cast Steel Cone Crusher Parts

Technical Specifications: HP Series Bowl Assembly

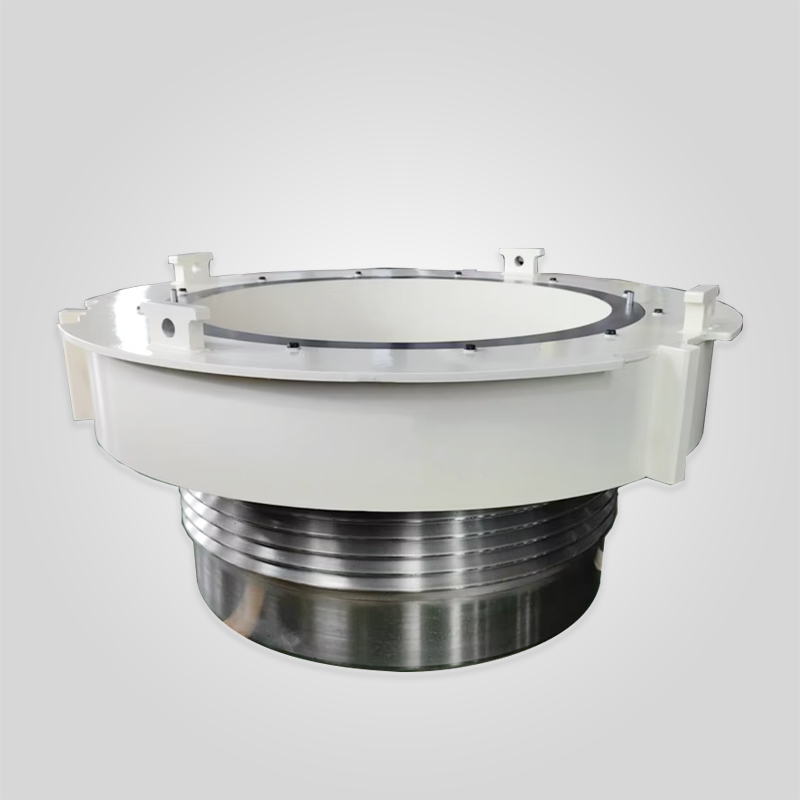

The Bowl Assembly is the upper structural heart of the HP Series cone crusher, holding the stationary liner (Bowl Liner) and controlling the Close Side Setting (CSS). As specialized crusher part suppliers, we manufacture these massive steel castings to exact OEM specifications. Unlike generic parts, our Bowls undergo strict thermal stress relief to ensure the adjustment threads remain perfectly circular throughout their service life.

Core Advantages: Metallurgy & Precision Machining

A failed Bowl Assembly means a stopped production line. Our Spare parts manufacturing process is designed to eliminate structural risks:

• High-Strength Cast Steel: We strictly utilize ASTM A148 Grade 80-50 (or DIN 1.7225 equivalent). This low-alloy cast steel offers the perfect balance of tensile strength and ductility, preventing frame cracking under the extreme cyclic loads of crushing hard granite.
• Stress Relief Annealing: After rough machining, every Bowl Assembly undergoes a thermal stress relief cycle. This prevents the casting from warping over time, ensuring the threads never “go oval” and bind inside the Adjustment Ring.
• CNC Thread Profiling: The large-diameter sawtooth threads are cut on heavy-duty CNC Vertical Borers. We maintain a strict tolerance on the pitch diameter to ensure smooth adjustment of the crusher setting under load.

Performance Comparison: Why Casting Quality Matters

Not all Crusher spares are created equal. Here is how our Bowl Assembly compares to standard aftermarket options:

Field Diagnosis: Inspecting Your Bowl Assembly

The Bowl Assembly is a long-life component, but it is not immune to wear. Inspect these areas during liner changes:

• Thread Condition: Clean the heavy grease from the threads. Look for shiny spots or burrs, which indicate “Galling” (metal-to-metal welding). This suggests the Adjustment Ring threads are worn or lubrication failed.
• Liner Seating Surface: Check the tapered surface where the Bowl Liner sits. If this surface is pitted or worn unevenly, the new liner will loosen, causing severe damage to the Bowl itself.
• Locking Nut Threads: Ensure the threads for the Bowl Liner locking nut are pristine. Damaged threads here are a major safety hazard.

Expert Tip: Installation & Lubrication

Preventing “Frozen” Bowls: The #1 failure mode for an HP Series Bowl is thread seizure. When installing a new Bowl Assembly, you must apply a liberal amount of Molybdenum Disulfide (MoS2) or specialized high-pressure thread paste.

Warning: Never mix grease types. If the OEM spec calls for Lithium EP2, stick to it. Mixing bases can cause the grease to harden into a cement-like substance, locking your crusher setting permanently.

Frequently Asked Questions (FAQ)

Q1: Is this Bowl Assembly made of Stainless Steel?
A1: No. That is a common misconception. It is made of High-Strength Alloy Cast Steel (ASTM A148). Stainless steel lacks the necessary yield strength and is cost-prohibitive for such a massive structural part.

Q2: Does the assembly come with the Bowl Liner installed?
A2: Typically, the Bowl Assembly (Structure) and Bowl Liner (Wear Part) are sold separately. However, as comprehensive crusher part suppliers, we can pre-assemble the liner for you to save installation time on site.

Q3: How do you ship such a large part?
A3: The Bowl Assembly for an HP300 or HP500 is oversized. We use specialized open-top containers or flat racks. The machined surfaces (threads) are wrapped in heavy-duty protective rubber and VCI film to prevent corrosion during ocean transit.
