GP220 Top Bearing | mm0539639 | Spider Bushing Spares

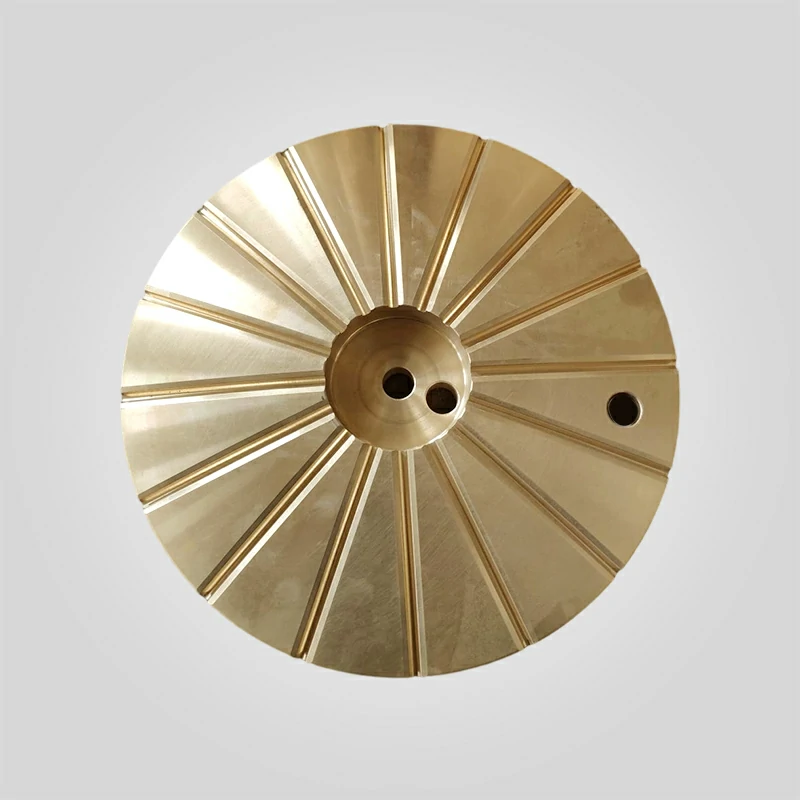

GP220 Top Bearing Assembly: Precision Alignment for Spider Components

The Top Bearing (Part No. mm0539639), technically referred to as the Spider Bushing, is the geometric anchor for the Metso GP220 Cone Crusher. Unlike simple wear parts, this component dictates the concentricity of the main shaft during the gyratory cycle. It serves as the primary radial bearing at the top of the crusher, absorbing lateral vector forces generated during the crushing of hard rock applications.

For facility managers sourcing from GP crusher parts suppliers, ensuring this component’s dimensional accuracy is critical. A deviated top bearing leads to eccentric misalignment, potentially causing catastrophic damage to the bottom shell bushing and the main shaft itself.

Core Engineering Advantages

• Geometric Centering: Machined to ISO H7 tolerance classes to ensure the main shaft remains perfectly vertical when at rest and follows the correct geometric path during operation, preventing “bell-mouthing” of the spider hub.
• Hydrodynamic Support: Features engineered oil/grease distribution grooves that maintain a stable lubrication wedge even under shock loads, essential for protecting crusher spares in the upper assembly.
• Thermal Stability: The alloy composition is selected to handle the thermal expansion differential between the steel main shaft and the cast steel spider, preventing seizure during high-temperature operation.

Technical Specifications & Metallurgy

Our replacement units are manufactured using centrifugal casting methods, superior to static casting. This process drives impurities to the inner diameter (which is then machined away), leaving a dense, non-porous microstructure.

Performance Data: Centrifugal vs. Static Cast

Replacing standard cast bushings with our centrifugally cast Top Bearing yields measurable operational gains:

• Wear Life Extension: Field data indicates a 20-25% increase in service life due to the uniform grain structure, which resists propagation of fatigue cracks.
• Lubricant Retention: The dense microstructure reduces lubricant bleed-off, maintaining a critical oil film thickness that reduces friction coefficients by approximately 15% compared to sand-cast alternatives.
• Load Capacity: Capable of withstanding radial impact loads up to 120 MPa without plastic deformation.

Field Diagnosis: Spider Bushing Analysis

Monitoring the condition of your Top Bearing is vital for preventative maintenance. Look for these specific failure signatures:

• “Spider Breathing”: If you observe vertical movement or audible knocking at the spider assembly, the bushing clearance has likely exceeded the 1.5mm rejection limit.
• Lubricant Analysis: The presence of golden/bronze glitter in the spider grease purge indicates rapid adhesive wear, suggesting lubrication starvation or shaft surface roughness.
• Uneven Mantle Wear: If the crushing chamber shows wear concentrated on one side, it often indicates the top bearing has worn oval, allowing the shaft to tilt off-axis.

Expert Engineer’s Note: Installation Protocol

Critical Fitment Advice: Installation of the mm0539639 Top Bearing requires strict adherence to thermal interference protocols. The spider hub should be checked for concentricity before installation; a worn hub bore will distort the new bushing. We recommend using liquid nitrogen (cryogenic cooling) to shrink the bushing for insertion rather than using excessive force, which can score the bronze. Always replace the dust seal/scraper ring simultaneously. When evaluating GP crusher parts suppliers, verify they provide the correct oversized outer diameter options if your spider hub has been re-bored.
